Make Helmet Communication Less Complicated
Helmet communicator marketing focuses heavily on 24-rider mesh groups and multi-kilometer line-of-sight range assertions. Yet most everyday riders simply want clear turn-by-turn GPS prompts, distortion-free music through filtered earplugs, or reliable two-way talk with a passenger or single riding partner—without painful speaker pressure against their ears or a clamp that pops loose on a thick helmet rim.
Verify Ear Pocket Depth and ECE 22.06 Shell Rules First

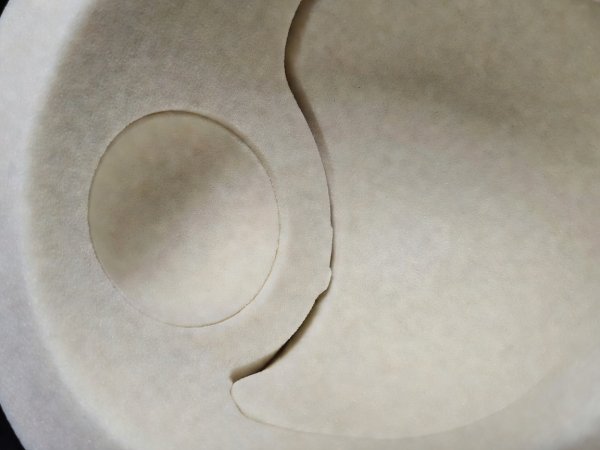

Before selecting between Cardo, Sena, or OEM-integrated modules (such as Shoei SRL-Mesh, Schuberth SC2, or AGV Insyde), pull the cheek pads out of your helmet and measure the diameter and depth of the molded EPS ear recesses. Standard communicator speakers measure 40 mm in diameter and roughly 7.3 mm to 9 mm thick. Optional upgrade drivers (such as 45 mm JBL or Harman Kardon speakers) expand to 45 mm wide and up to 10.2 mm thick.
Even 2 millimeters of excess speaker thickness can press against the cartilage of the outer ear after 45 minutes on the highway. Furthermore, helmets tested under UN ECE Regulation 22.06 have strict homologation rules regarding integrated accessory bays: if a helmet was certified with a proprietary slot (like the Shoei Neotec 3 or GT-Air 3), universal friction clamps often cannot slide between the outer shell and the stiffened lower impact gasket, requiring the included curved adhesive plate instead.
Helmet Shell Compatibility Checklist
- Recess DiameterMeasure 40 mm vs. 45 mm EPS pocket cutout
- Shell Rim GapNeeds 4 mm–6 mm gap between shell & EPS for clip
- Mic TypeWired button mic (full-face) vs. hybrid boom (modular)
- Sun Visor SliderCheck left-side drop-visor lever clearance
Protocol & Control Trade-Offs
- Bluetooth 5.2 (OBI)2–4 riders; direct cross-brand pairing supported
- Cardo DMC Gen 2Self-healing group mesh; proprietary to Cardo
- Sena Mesh 2.0Open/Group mesh channels; proprietary to Sena
- WaterproofingCardo specifies IP67; many Sena units state water-resistant
Bluetooth OBI vs. Proprietary Mesh Networks
If you ride solo or exclusively with one pillion passenger, you do not need to pay the premium for dynamic mesh hardware. Standard Bluetooth 5.1/5.2 units (such as the Cardo Freecom 2x/4x or Sena 5S) provide lower battery drain, smaller shell footprints, and cross-brand interoperability via the Open Bluetooth Intercom (OBI) alliance spoken by Cardo, Sena, Midland, and UClear.
Mesh networking (Cardo Dynamic Mesh Communication or Sena Mesh 2.0) shines only when three or more riders travel together and occasionally drop out of range at traffic lights; mesh nodes reform automatically without breaking a daisy-chain bridge. However, Cardo DMC and Sena Mesh do not talk natively to each other. Mixing brands in a mesh group requires pairing one Cardo rider and one Sena rider via a standard Bluetooth channel and having them bridge their respective mesh groups.
Published Intercom Specifications & Fitment Notes
| System Model | Intercom Protocol | Speaker Dimensions (Sourced) | Published Ingress Rating | Glove Controls & Shell Mounting Notes |
|---|---|---|---|---|
| Cardo Packtalk Edge | 2nd Gen DMC + Bluetooth 5.2 (OBI) | 40 mm x 10 mm (JBL drivers) | IP67 Waterproof (IEC 60529) | Magnetic Air Mount snaps unit in place; slim profile with physical roller wheel plus three raised buttons. |
| Cardo Freecom 4x | Bluetooth 5.2 Live Intercom (up to 4 riders) | 40 mm x 10 mm (JBL drivers) | IP67 Waterproof | Lower cost than Mesh; ideal for solo tourers and 2-bike pairs who want full IP67 rain protection. |

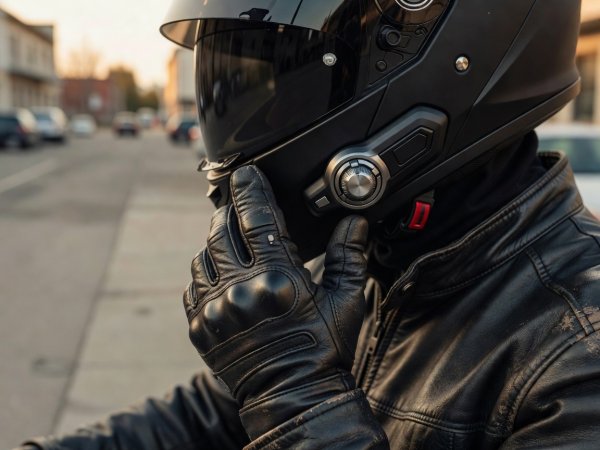

| Sena 50S | Mesh 2.0 + Bluetooth 5.0 | 40 mm x 7.2 mm (Harman Kardon) | Unverified IP code (manufacturer states "water-resistant") | Large gloved jog-dial is easy to locate with winter gauntlets; clamp base includes 3.5 mm earbud port option. |
| Sena Spider ST1 / RT1 | Mesh 2.0 Only (Phone BT for audio) | 40 mm x 7.2 mm HD Speakers | Unverified IP code ("water-resistant") | Omits legacy Bluetooth intercom to reduce price for groups committed 100% to Sena Mesh. |
| Shoei SRL-Mesh / Schuberth SC2 | Sena Mesh 2.0 + Bluetooth 5.0 | 40 mm pre-wired into helmet EPS | Matches helmet seal gasket | Zero external aerodynamic drag; battery sits in rear neck roll; fits only specific homologated helmet models. |
Installation & Audio Routing Considerations
Why Filtered Earplugs Improve Speaker Clarity
At 100 km/h (62 mph), turbulent airflow around a helmet generates 94 dB to 102 dB of low-frequency wind rumble. Without earplugs, your inner ear experiences acoustic reflex fatigue, and turning the intercom volume to 100% pushes small 40 mm drivers into harmonic distortion. Wearing acoustic filter earplugs (17 dB to 24 dB NRR) attenuates low-frequency wind roar while allowing speech frequencies (1 kHz to 4 kHz) from helmet speakers to pass cleanly.
Routing the Boom Microphone in Modular (Flip-Up) Helmets
Full-face helmets use a thin Velcro button microphone stuck inside the stationary chin bar. Modular helmets require a flexible gooseneck boom microphone anchored behind the left cheek pad so the chin bar can pivot open without ripping the wire. After installation, cycle the modular chin bar open and closed five times while checking that the boom arm does not catch on the metal locking pawls.
Avoiding TFT Dashboard PairingLoops (Phone + Bike + Helmet)
If your motorcycle features a Bluetooth TFT dashboard (BMW Connectivity, Triumph MyTriumph, KTM MyRide, Honda RoadSync), pairing your phone simultaneously to both the helmet and the bike causes audio drop-outs and missed calls. Follow the hub rule: pair your smartphone and your helmet communicator ONLY to the motorcycle TFT dashboard (or dedicated GPS unit), and delete the direct phone-to-helmet Bluetooth bond unless you are riding a bike without a connected dash.
